Redline Monocog

Redline Monocog
  • Color: Matte Black
$700.00
Color: Matte Black
Size: Select size
Please select options Unavailable

Details

The Monocog is a steel singlespeed 29er for the ultimate in simplicity. A chromoly frame and fork makes for old-school style and gives you the smooth ride quality that steel is known for. Durable, double-wall 29-inch wheels let you roll over obstacles, whether you are on the road or cruising on trails. Tektro mechanical disc brakes and a nice, wide 740mm riser handlebar round out the package for great control and a comfortable riding position. This fully rigid mountain bike is at home on trails, gravel roads, and even pavement to give you a versatile ride that's plenty fun on the singletrack.

bike frame with labeled dimensions
Bike Sizes:
Small/15Medium/17Large/19X-Large/21
A. Reach 418.0mm 435.0mm 454.0mm 468.0mm
B. Stack 582.0mm 586.0mm 596.0mm 600.0mm
C. Standover 721.0mm 753.0mm 796.0mm 819.0mm
D. Effective Top Tube 585.0mm 603.0mm 625.0mm 640.0mm
E. Head Tube Angle 68.0° 68.0° 68.0° 68.0°
F. Head Tube Length 95.0mm 100.0mm 110.0mm 115.0mm
G. Seat Tube Angle 74.0° 74.0° 74.0° 74.0°
H. Seat Tube Length 385.0mm 432.0mm 482.0mm 535.0mm
I. Bottom Bracket Height 292.0mm 292.0mm 292.0mm 292.0mm
J. Bottom Bracket Drop 65.0mm 65.0mm 65.0mm 65.0mm
K. Fork Rake/Offset 46.0mm 46.0mm 46.0mm 46.0mm
M. Wheelbase 1121.0mm 1140.0mm 1163.0mm 1179.0mm
O. Chainstay Length 450.0mm 450.0mm 450.0mm 450.0mm
Fork Length 481.0mm 481.0mm 481.0mm 481.0mm

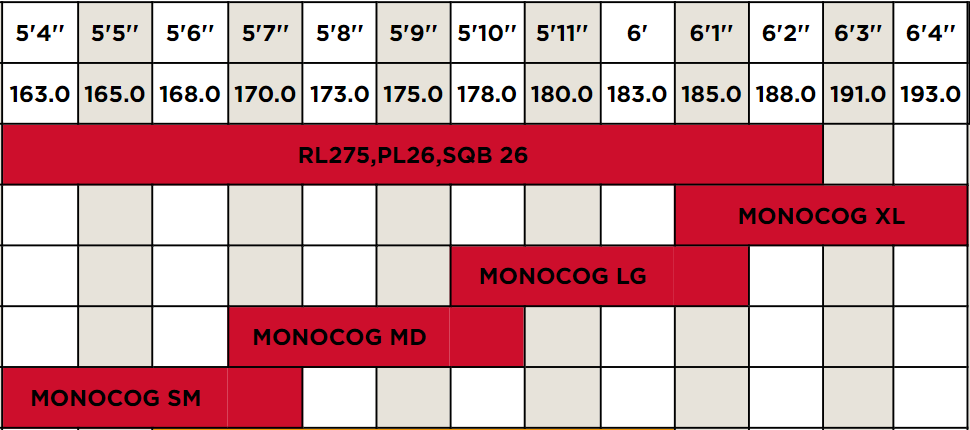

Sizing

Specs

Frame Full Chromoly Disc
Fork Chromoly Disc
Rims Alloy DDM-2 Double Wall, Disc
Hubs Front: Formula Alloy Disc, QR, 32h
Rear: Formula Alloy Disc, Cassette Spaced for Single Speed, Nutted, 32h
Spokes 14g Stainless Steel
Tires Vee Rubber, 29 x 2.25
Bottom Bracket Sealed External Euro
Crankset Proline 2pc Alloy Forged Cranks 175mm w/24mm Chromo Spindle
Chainrings Alloy, 104 BCD, 32t
Cassette/Freewheel 18t
Chain KMC Z33
Brakes Tektro MD-M300, Mechanical Disc, 160mm Rotor
Brake Levers Tektro ML520
Handlebars Alloy, 740mm Wide, 15mm Rise, 9 Deg Back, 5 Deg Up, 35mm
Tape/Grips Redline Monster 151, No Flange
Stem Alloy, 3D Forged, 40mm, 35mm Bar Bore
Headset FSA Impact Integrated 1 1/8"
Seatpost Alloy, 26.8 x 350mm
Saddle Redline MTB
Pedals Monster PC, Sealed Bearing, Ultra Low profile w/ Broached Chromo Spindle

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Matte Black / 17-inch 791964597193 06-790-2012 210000013711
Matte Black / 19-inch 791964597209 06-790-2014 210000013714
